1. Wireless Communication

Detailed Description

Wireless communication is the transfer of information from one place to another without using physical wires, using electromagnetic waves. It encompasses technologies like radio, satellite, and cellular networks, enabling mobility and flexibility in data exchange. This method relies on modulating signals onto carrier waves that propagate through free space or other media.

History

Pioneered by Guglielmo Marconi in the late 19th century with the first transatlantic radio transmission in 1901. Evolved through World Wars with radar and radio advancements, leading to modern cellular systems starting with 1G in 1979.

Derivation of Formula

No specific core formula, but fundamental is the Friis transmission equation for power received: Derived from isotropic radiator power density (P_t / 4π r^2) times effective area (G_r λ^2 / 4π), yielding P_r = P_t G_t G_r (λ / 4π r)^2.

Formula: \( P_r = P_t G_t G_r \left( \frac{\lambda}{4 \pi r} \right)^2 \)

Where: P_r = received power, P_t = transmitted power, G_t = transmitter gain, G_r = receiver gain, λ = wavelength, r = distance.

Real-Life Example

Making a phone call using a mobile phone instead of a wired telephone, where voice is transmitted via radio waves to a base station.

2. Wireless Signal

Detailed Description

A wireless signal is an electrical or electromagnetic wave that carries information through the air. It can be analog or digital, modulated to encode data, and is subject to propagation effects like attenuation.

History

James Clerk Maxwell predicted electromagnetic waves in 1865; Heinrich Hertz demonstrated them in 1887, leading to wireless telegraphy.

Derivation of Formula

Basic wave equation from Maxwell's equations: ∇²E = μ ε ∂²E/∂t², leading to speed c = 1/√(μ ε).

Formula: \( c = \frac{1}{\sqrt{\mu \epsilon}} \)

Where: c = speed of light, μ = permeability, ε = permittivity.

Real-Life Example

The signal sent from a Wi-Fi router to your laptop, carrying internet data.

3. Transmitter

Detailed Description

A transmitter is a device that generates and sends a signal into the air. It modulates the information signal onto a carrier wave and amplifies it for transmission.

History

Early transmitters by Hertz in 1880s; Marconi's spark-gap transmitters in 1890s; modern solid-state in mid-20th century.

Derivation of Formula

Power output: From amplifier gain, P_out = G P_in, derived from circuit theory.

Formula: \( P_{out} = G P_{in} \)

Where: P_out = output power, G = gain, P_in = input power.

Real-Life Example

A mobile phone sending voice data during a call.

4. Receiver

Detailed Description

A receiver is a device that captures a signal from the air and converts it back into information. It demodulates the received signal to extract the original data.

History

Early crystal detectors in 1900s; superheterodyne by Edwin Armstrong in 1918 revolutionized reception.

Derivation of Formula

Sensitivity: Minimum P_r for SNR threshold, from noise figure F and kTB, SNR = P_r / (k T B F).

Formula: \( SNR = \frac{P_r}{k T B F} \)

Where: SNR = signal-to-noise ratio, k = Boltzmann's constant, T = temperature, B = bandwidth, F = noise figure.

Real-Life Example

A radio receiving music from a radio station.

5. Antenna

Detailed Description

An antenna is a component that radiates signals into the air or receives signals from the air. It converts electrical energy to electromagnetic waves and vice versa.

History

Hertz used dipole antennas in 1886; Marconi used long-wire antennas; modern arrays in WWII radar.

Derivation of Formula

Gain G = 4π A_e / λ², where A_e is effective area, derived from reciprocity theorem.

Formula: \( G = \frac{4 \pi A_e}{\lambda^2} \)

Where: G = gain, A_e = effective aperture, λ = wavelength.

Real-Life Example

The metal rod on an FM radio.

6. Wireless Propagation

Detailed Description

Wireless propagation is the way radio waves travel through space, including reflection, diffraction, and scattering. These phenomena affect signal strength and quality in various environments.

History

Studied by Hertz; ionospheric reflection by Marconi; multipath in urban areas post-WWII.

Derivation of Formula

Path loss L = 20 log(4π r / λ), derived from Friis equation setting gains to 1.

Formula: \( L = 20 \log_{10} \left( \frac{4 \pi r}{\lambda} \right) \) dB

Where: L = path loss, r = distance, λ = wavelength.

Real-Life Example

A radio signal bending around buildings to reach a listener.

7. Radio Wave

Detailed Description

A radio wave is a type of electromagnetic wave used to carry wireless signals. They have longer wavelengths and lower frequencies than visible light.

History

Predicted by Maxwell, generated by Hertz, commercialized by Marconi.

Derivation of Formula

Wavelength λ = c / f, from wave speed c = f λ.

Formula: \( \lambda = \frac{c}{f} \)

Where: λ = wavelength, c = speed of light, f = frequency.

Real-Life Example

FM radio waves used for broadcasting music.

8. Radio Wave Equation and Its Parts

Detailed Description

A radio wave can be described using properties such as frequency, wavelength, amplitude, and phase. The wave equation is E(t) = A sin(2π f t + φ).

History

Sinusoidal representation from Fourier analysis in 19th century.

Derivation of Formula

From harmonic oscillator: d²x/dt² + ω² x = 0, solution x = A sin(ω t + φ), where ω = 2π f.

Formula: \( E(t) = A \sin(2 \pi f t + \phi) \)

Where: E(t) = electric field, A = amplitude (strength), f = frequency (cycles/s), t = time, φ = phase (offset).

Real-Life Example

Frequency: FM radio ≈ 100 MHz; Amplitude: higher = louder; Wavelength: related to antenna size; Phase: for modulation.

9. Frequency

Detailed Description

Frequency is the number of times a wave repeats per second, measured in Hertz (Hz). It determines the band and propagation characteristics.

History

Named after Hertz who measured it first.

Derivation of Formula

f = 1 / T, where T is period, from definition of cycles per second.

Formula: \( f = \frac{1}{T} \)

Where: f = frequency, T = period.

Real-Life Example

An FM radio station at 99.5 MHz.

10. Spectrum

Detailed Description

The spectrum is the entire range of electromagnetic frequencies used for communication. It's allocated by regulatory bodies like FCC.

History

ITU allocations since 1906 Radio Convention.

Derivation of Formula

No formula, but bands defined by f ranges.

Real-Life Example

Radio, TV, Wi-Fi, and mobile signals in different parts.

11. Bandwidth in Analog Transmission

Detailed Description

Bandwidth is the range of frequencies used by an analog signal. It determines the information capacity per Nyquist theorem.

History

Concept from telephony in early 20th century.

Derivation of Formula

B = f_max - f_min, straightforward range.

Formula: \( B = f_{max} - f_{min} \)

Where: B = bandwidth, f_max = highest frequency, f_min = lowest.

Real-Life Example

An FM radio station using 100.1 to 100.3 MHz.

12. Bandwidth in Digital Transmission

Detailed Description

Bandwidth refers to the data-carrying capacity of a channel, usually measured in bits per second (bps). Related to analog bandwidth via Shannon's capacity.

History

Shannon's theorem in 1948 defined maximum rate.

Derivation of Formula

C = B log2(1 + SNR), from information theory, maximizing rate over Gaussian channel.

Formula: \( C = B \log_2 (1 + SNR) \)

Where: C = capacity (bps), B = bandwidth (Hz), SNR = signal-to-noise ratio.

Real-Life Example

A 10 Mbps internet connection.

13. Coherence Bandwidth

Detailed Description

Coherence bandwidth is the range of frequencies over which a channel behaves the same, inversely related to delay spread.

History

Introduced in multipath channel models in 1960s.

Derivation of Formula

B_c ≈ 1 / (2π σ_τ), approximate from frequency correlation function e^{- (2π f σ_τ)^2 / 2} dropping to 1/e.

Formula: \( B_c \approx \frac{1}{2 \pi \sigma_{\tau}} \)

Where: B_c = coherence bandwidth, σ_τ = RMS delay spread.

Real-Life Example

If signal bandwidth < coherence bandwidth, less distortion.

14. Channel

Detailed Description

A channel is the medium through which a signal travels from transmitter to receiver. In wireless, it's often air or space.

History

Concept from Shannon's channel capacity.

Derivation of Formula

No specific, but capacity as above.

Real-Life Example

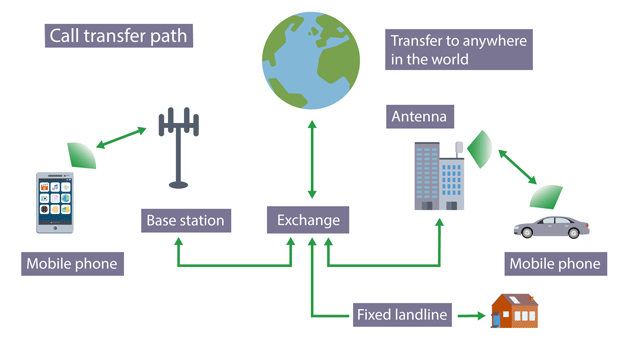

Air between a mobile phone and a base station.

15. Modulation

Detailed Description

Modulation is the process of changing a carrier signal to carry information. Essential for efficient transmission over channels.

History

First used in AM radio by Fessenden in 1906.

Derivation of Formula

For AM: s(t) = A_c [1 + μ m(t)] cos(2π f_c t), where μ is modulation index <1 to avoid overmodulation.

Formula: \( s(t) = A_c [1 + \mu m(t)] \cos(2 \pi f_c t) \)

Where: s(t) = modulated signal, A_c = carrier amplitude, μ = modulation index, m(t) = message, f_c = carrier frequency.

Real-Life Example

Changing a radio wave to carry voice data.

16. Amplitude Modulation (AM)

Detailed Description

AM is a technique where the amplitude of the carrier wave is varied according to the message signal. Simple but susceptible to noise.

History

Demonstrated by Fessenden in 1906 for voice transmission.

Derivation of Formula

From multiplying carrier by (1 + modulated term): expands to carrier + sidebands via trig identity.

Formula: \( s(t) = A_c (1 + m \sin(2 \pi f_m t)) \sin(2 \pi f_c t) \)

Where: m = modulation depth, f_m = message frequency.

Real-Life Example

AM radio broadcasting.

17. Frequency Modulation (FM)

Detailed Description

FM is a technique where the frequency of the carrier wave is varied based on the message. More noise-resistant than AM.

History

Invented by Armstrong in 1933.

Derivation of Formula

s(t) = A_c cos(2π f_c t + β sin(2π f_m t)), where β = Δf / f_m, integral of frequency deviation.

Formula: \( s(t) = A_c \cos(2 \pi f_c t + \beta \sin(2 \pi f_m t)) \)

Where: β = modulation index, Δf = frequency deviation.

Real-Life Example

FM radio stations used for music.

18. Wireless Transmission

Detailed Description

Wireless transmission is the sending of data through the air using electromagnetic waves. Includes broadcast, point-to-point, etc.

History

Began with Marconi's wireless telegraph.

Derivation of Formula

Similar to Friis for link budget.

Real-Life Example

Sending a text message using a mobile network.

19. Limitations of Wireless Communication

Detailed Description

Wireless communication has challenges that reduce signal quality and reliability, such as interference, limited range, security issues.

History

Recognized since early radio with static noise.

Derivation of Formula

No single formula, but for interference, SIR = S / I.

Real-Life Example

Poor signal during heavy rain or inside buildings.

20. Types of Transmission

Detailed Description

Ways in which data is sent over a channel: Simplex (one-way), Half-duplex (two-way alternate), Full-duplex (two-way simultaneous).

History

Simplex in early broadcast; duplex in telephony.

Derivation of Formula

No formula.

Real-Life Example

Simplex: TV broadcast; Half-duplex: walkie-talkie; Full-duplex: phone call.

21. Multiple Access Control Methods

Detailed Description

Methods that allow many users to share the same communication channel: FDMA (frequency), TDMA (time), CDMA (code), OFDMA (orthogonal frequency).

History

FDMA in 1G; TDMA/CDMA in 2G; OFDMA in 4G.

Derivation of Formula

For CDMA, orthogonality: integral of codes over bit period = 0.

Real-Life Example

FDMA: Different frequencies; TDMA: Time slots.

22. Cellular Network

Detailed Description

A cellular network divides a large area into small cells, each served by a base station, allowing frequency reuse and handover.

History

Proposed by Bell Labs in 1947; first commercial in 1979 Japan.

Derivation of Formula

Cluster size N = i² + i j + j² for hexagonal cells.

Formula: \( N = i^2 + i j + j^2 \)

Where: N = reuse factor, i,j = integers for cell pattern.

Real-Life Example

Mobile phone networks like GSM, 3G, 4G, 5G.

23. Radio Frequency (RF)

Detailed Description

Radio frequency refers to frequencies used for wireless communication, typically from 3 kHz to 300 GHz. Subdivided into bands like VHF, UHF.

History

Defined by ITU; allocations evolved with technology.

Derivation of Formula

No specific.

Real-Life Example

Wi-Fi operating at 2.4 GHz.

24. Radio Channel

Detailed Description

A radio channel is a specific frequency band used to transmit a radio signal. Can be narrow or wide.

History

Channelization in early radio to avoid interference.

Derivation of Formula

Channel bandwidth B_ch = total B / number of channels.

Real-Life Example

A GSM voice channel.

25. Communication Channel

Detailed Description

A communication channel is any path that carries information from sender to receiver, wired or wireless.

History

From smoke signals to modern networks.

Derivation of Formula

No specific.

Real-Life Example

Fiber cable (wired) or air (wireless).

26. Narrowband Systems

Detailed Description

Narrowband systems use a small bandwidth, suitable for voice or low-data applications, with better range but lower rates.

History

Used in early radio and 2G voice.

Derivation of Formula

B < coherence bandwidth for flat fading.

Real-Life Example

AM radio communication.

27. Wideband Systems

Detailed Description

Wideband systems use a large bandwidth, allowing higher data rates but shorter range or more complexity.

History

Introduced in 3G and beyond for data services.

Derivation of Formula

B > coherence bandwidth for frequency-selective fading.

Real-Life Example

Wi-Fi and 4G networks.

28. Limitations of Wireless Communication (Detailed)

Detailed Description

Attenuation: Signal becomes weaker over distance due to spreading and absorption.
Distortion: Signal shape changes from multipath or frequency selectivity.
Dispersion: Signal spreads in time from delay spread.
Interference: Unwanted signals affect communication from co-channel or adjacent.

History

Mitigations developed over time, like equalizers in 1970s.

Derivation of Formula

For attenuation: L = 10 n log(r), Okumura-Hata model empirical.

Real-Life Examples

Attenuation: Weak mobile signal far from tower.
Distortion: Unclear audio during a call.
Dispersion: Overlapping data bits.
Interference: Noise from other Wi-Fi networks.
